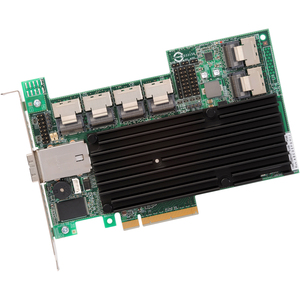

LSI MegaRAID SAS 9280-24I4E 24-PORT SAS/SATA 6GB/S PCIe 2.0 512MB RAID Controller Card Single

This product can only be exchanged or replaced with the exact same item.

Supports RAID 0/1/5/6/10/50/60 No Cables
LSI MegaRAID SAS 9280-24I4E 24-PORT SAS/SATA 6GB/S PCIe 2.0 512MB RAID Controller Card Single
Actual product may not be exactly as shown.
Customer Photos (0)
LSI
Reg. Price: $1,459.00  CAD
Availability:
Back Order

This product is available but currently we do not have stock. Order it today and we will ship when it's available.
LSI MegaRAID SAS 9280-24I4E 24-PORT SAS/SATA 6GB/S PCIe 2.0 512MB RAID Controller Card Single
$1,459.00
Avg. Rating: 0 Customer Reviews | Write a Review
Share this:
Add to your wish list
E-Mail to a friend
More from LSI
More RAID Cards - SAS from LSI
Similar products
Print this item
Notify me

   SKU:
68664
   Shipping Weight:   1 lbs
   Part #: LSI00211
Features    [ Edit | History ] - By Shu_M @Sep 04, 2013

Features

Twenty-four internal + four external 6Gb/s SATA+SAS ports
Six internal mini-SAS SFF-8087 x4 connectors
One mini-SAS SFF-8088 external connector
Half-Length, Full Height (6.6¡± x 4.376¡±)
512MB DDRII cache (800MHz)

Benefits

Internal drive storage and external JBOD expansion.
PCI Express® 2.0 provides faster signaling for high-bandwidth applications.
Connect up to 240 3Gb/s and 6Gb/s SATA and SAS devices.
Support for LSI Advanced Software Options including MegaRAID FastPath, CacheCade, SafeStore, and Recovery software



Specifications    [ Edit | History ] - by Shu_M @Sep 04, 2013
General Information
     Brand Name: LSI Logic
     Manufacturer: LSI Logic Corp
     Manufacturer Part Number: LSI00211
     Manufacturer Website Address: http://www.lsilogic.com
     Product Line: MegaRAID
     Product Model: 9280-24i4e
     Product Name: MegaRAID 9280-24i4e SAS RAID Controller
     Product Type: SAS Controller
Interfaces/Ports
     Number of SAS Ports (External): 1
     Number of SAS Ports (Internal): 6
     SAS Connector Details: 6 SFF-8087
1 SFF-8088
     Total Number of SAS Ports: 7
Miscellaneous
     Platform Supported: PC
SPARC
Physical Characteristics
     Card Height: Full-height
     Card Length: Half-length
     Form Factor: Plug-in Card
     Height: 4.4" (111.2 mm)
     Width: 6.6" (167.6 mm)
Technical Information
     Controller Type: Serial ATA/600
     Host Interface: PCI Express 2.0 x8
     RAID Levels: 0
1
5
6
10
50
60
JBOD
     RAID Supported: Yes
